Genie Telehandlers
Genie® products are used in a wide range of industries on jobsites and in facilities around the world. Our versatile booms, lifts and more are the right choice for many applications— including anywhere you need to lift workers, tools and materials to get the job done.
Compact Telehandlers
Genie compact telehandlers are the perfect choice for tasks both large and small. Easy to maneuver and convenient to service, with a variety of rugged attachments, Genie compact telehandlers meet the needs of most construction, masonry, landscape and farming applications.
- Compact footprint and low stowed height — easy to transport and maneuver
- Three selectable steering modes: front-wheel, coordinated and crab steer
- Standard auxiliary hydraulic system is easily tailored for a variety of attachments
- Interchangeable, common components for maintenance efficiency
- Simple no-tool access to daily inspection points
GTH™-5519
GTH™-5519
- Lift Capacity: 5,500 lbs (2,500 kg)
- Lifting Height: 19 ft (5.79 m)
- Forward Reach: 11 ft (3.35 m)
High Reach Telehandlers
Genie high reach telehandlers offer excellent lift capacity, easily covering all your worksite needs. Available in two models, these telehandlers offer excellent productivity on jobsites ranging from new construction of multi-story buildings to masonry. Powerful features such as fourwheel drive and a turbocharged diesel engine provide reliable performance in the most rugged conditions.
- Heavy-duty workhorse for lifting applications in construction, landscaping and agriculture
- Ideal for loading/unloading and moving/placing materials, as well as jobsite cleanup
- Low-end torque, four-wheel drive and four-wheel steering for hills and rough terrain
- Simple no-tool access to daily inspection points
GTH™-636
GTH™-636
- Lift Capacity: 6,000 lbs (2,722 kg)
- Lifting Height: 36 ft (10.97 m)
- Forward Reach: 21 ft 11 in (6.68 m)
GTH™-844
GTH™-844
- Lift Capacity: 8,000 lbs (3,629 kg)
- Lifting Height: 44 ft (13.41 m)
- Forward Reach: 27 ft (8.23 m)

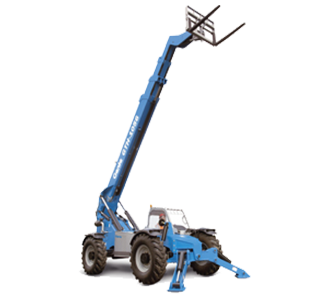

GTH™-1056
GTH™-1056
- Lift Capacity: 10,000 lbs (4,536 kg)
- Lifting Height: 56 ft 10 in (17.32 m)
- Forward Reach: 42 ft (12.80 m)
GTH™-1256
GTH™-1256
- Lift Capacity: 12,000 lbs (5,443 kg)
- Lifting Height: 56 ft (17.07 m)
- Forward Reach: 42 ft (12.80 m)
GTH™-1544
GTH™-1544
- Lift Capacity: 15,000 lbs (6,804 kg)
- Lifting Height: 44 ft (13.41 m)
- Forward Reach: 27 ft 3 in (8.31 m)
Genie OEM Attachments
Standard Carriages 48 in (122 cm)
Standard carriages are offered in the 48 in (122 cm) size and are available as a quick attach configuration.
Fits: GTH™-5519, GTH™-636, GTH™-844, GTH™-1056, GTH™-1256, GTH™-1544
Standard Carriages 60 in (152 cm)
Standard carriages are offered in 60 in (152 cm) size and are available as a quick attach configuration.
Fits: GTH™-636, GTH™-844, GTH™-1056, GTH™-1256, GTH™-1544
Standard Carriages 72 in (183 cm)
Standard carriages are offered in 72 in (183 cm) size and are available as a quick attach configuration.
Fits: GTH™-636, GTH™-844, GTH™-1056, GTH™-1256, GTH™-1544
Rotate Carriage 48 in (122 cm)
Allows up to 10° of carriage rotation clockwise and counter-clockwise for picking up or placing a load on a surface that is not level.
Fits: GTH™-5519, GTH™-636, GTH™-844, GTH™-1056
Rotate Carriage 60 in (152 cm)
Allows up to 10° of carriage rotation clockwise and counter-clockwise for picking up or placing a load on a surface that is not level.
Fits: GTH™-636, GTH™-844, GTH™-1056, GTH™-1256, GTH™-1544
Rotate Carriage 72 in (183 cm)
Allows up to 10° of carriage rotation clockwise and counter-clockwise for picking up or placing a load on a surface that is not level.
Fits: GTH™-636, GTH™-1056, GTH™-1256, GTH™-1544
Sideshift Carriage
The sideshift carriage allows carriage to move from side to side to allow for alignment of load and landing area.
Fits: GTH™-5519
Pallet Forks 48 in (122 cm)
Transport loads easily with standard 48 in (122 cm) forks and carriage.
Fits: GTH™-5519, GTH™-636, GTH™-844, GTH™-1056, GTH™-1256, GTH™-1544
Pallet Forks 60 in (152 cm)
Transport loads easily with 60 in (152 cm) forks and carriage to match your jobsite needs.
Fits: GTH™-5519, GTH™-636, GTH™-844, GTH™-1056, GTH™-1256, GTH™-1544
Pallet Forks 72 in (183 cm)
Transport loads easily with standard 72 in (183 cm) forks and carriage to match your jobsite needs.
Fits: GTH™-636, GTH™-844, GTH™-1056, GTH™-1256, GTH™-1544
Truss Boom
The truss boom is the perfect solution for overhead lifting, providing an extra 6 ft (1.83 m) of range to lift items such as trusses or bulky materials into place.
Fits: GTH™-5519, GTH™-1256, GTH™-1544
Heavy Duty Multi-Purpose Bucket
A heavy duty multi-purpose bucket is equipped with a bolt-on cutting edge perfect for a variety of applications, the multi-purpose bucket attachment increases worksite productivity.
Fits: GTH™-5519
Industrial Grapple Bucket
The industrial grapple bucket clamps down to grab the load for easy and secure transport of hard-to-handle materials.
Fits: GTH™-5519
Universal Skid Steer Adapter
The adapter allows you to pull up and attach to a wide variety of skid steer type attachments in just seconds, reducing your overall equipment costs and increasing the versatility of your fleet.
Fits: GTH™-5519
Approved 3rd Party Attachments
1400B Series Bucket
Star Industries
Fits: GTH™-5519, GTH™-636, GTH™-844, GTH™-1056, GTH™-1256, GTH™-1544
Trailer Spotter 1000762-SWVL
Arrow Material Handling
Fits: GTH™-636, GTH™-844, GTH™-1056
Truss Boom 1000100-12-F
Arrow Material Handling
Fits: GTH™-636, GTH™-844, GTH™-1056
Trash Hopper Models 1420 and 1425
Star Industries
Fits: GTH™-5519, GTH™-636, GTH™-844, GTH™-1056, GTH™-1256, GTH™-1544
Lift Hook Models 1366, 1370, 1370B, 1371B and 1377
Star Industries
Fits: GTH™-5519, GTH™-636, GTH™-844, GTH™-1056, GTH™-1256, GTH™-1544
Spreader Bar Models 1140, 1150, 1160, 1190 and 1195
Star Industries
Fits: GTH™-5519, GTH™-636, GTH™-844, GTH™-1056, GTH™-1256, GTH™-1544
Work Platform
Personnel work platforms available in four sizes from 4 ft x4 ft (1.22 m x 1.22 m) to 4 ft x 9 ft 8 in (1.22 m x 2.95 m)
Fits: GTH™-5519, GTH™-636, GTH™-844, GTH™-1056, GTH™-1256, GTH™-1544
Lift-N-Tow Models 1390B and 1395B
Star Industries
Fits: GTH™-636, GTH™-844, GTH™-1056
Pipe Grapple Model 1484
Arrow Material Handling
Fits: GTH™-5519, GTH™-636, GTH™-844, GTH™-1056, GTH™-1256, GTH™-1544
Extendable Truss Boom Model CE60-TH
Arrow Material Handling
Fits: GTH™-636, GTH™-844, GTH™-1056
Pipe/Pole Hold Down Model 60C-PHD
Cascade
Fits: GTH™-1256, GTH™-1544
Pipe Grapple Model 1484
Arrow Material Handling
Fits: GTH™-1256, GTH™-1544
