John Deere Scraper Tractors
Reliable and Productive
Our fully integrated tractor-scraper systems move more dirt than self-propelled scrapers or competitive tractors and scrapers, at one-third the initial investment and half the labor. All models deliver more power to handle our larger-capacity ejector scrapers RELIABLE PRODUCTIVE and our effcient, economical carry-all scrapers.
9470R
4WD Scraper Special Tractors
Getting the job done faster than ever.
- Horsepower: 470 engine hp
- Hydraulic Capacity: Up to 58 U.S. gpm (220 L/min) standard. Up to 115 U.S. gpm (435 L/min) optional.
- Drawbar Support: Available for long or short scraper drawbars
9520R
4WD Scraper Special Tractors
Getting the job done faster than ever.
- Horsepower: 520 engine hp
- Hydraulic Capacity: Up to 58 U.S. gpm (220 L/min) standard. Up to 115 U.S. gpm (435 L/min) optional.
- Drawbar Support: Available for long or short scraper drawbars
9570R
4WD Scraper Special Tractors
Getting the job done faster than ever.
- Horsepower: 570 engine hp
- Hydraulic Capacity: Up to 58 U.S. gpm (220 L/min) standard. Up to 115 U.S. gpm (435 L/min) optional.
- Drawbar Support: Available for long or short scraper drawbars
9620R
4WD Scraper Special Tractors
Getting the job done faster than ever.
- Horsepower: 620 engine hp
- Hydraulic Capacity: Up to 58 U.S. gpm (220 L/min) standard. Up to 115 U.S. gpm (435 L/min) optional.
- Drawbar Support: Available for long or short scraper drawbars
9470RT
Tracked Scraper Special Tractors
The power and the attitude to be the best at what you do.
- Horsepower: 470 engine hp
- Hydraulic Capacity: 115 U.S. gpm (435 L/min) standard
- Drawbar Support: Available for long or short scraper drawbars
9520RT
Tracked Scraper Special Tractors
The power and the attitude to be the best at what you do.
- Horsepower: 520 engine hp
- Hydraulic Capacity: 115 U.S. gpm (435 L/min) standard
- Drawbar Support: Available for long or short scraper drawbars

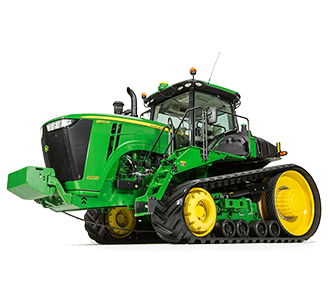

9570RT
Tracked Scraper Special Tractors
The power and the attitude to be the best at what you do.
- Horsepower: 570 engine hp
- Hydraulic Capacity: 115 U.S. gpm (435 L/min) standard
- Drawbar Support: Available for long or short scraper drawbars
9470RX
Tracked Scraper Special Tractors
The power and the attitude to be the best at what you do.
- Horsepower: 470 engine hp
- Hydraulic Capacity: Up to 58 U.S. gpm (220 L/min) standard. Up to 115 U.S. gpm (435 L/min).
- Drawbar Support: Available for short scraper drawbars
- Track Belt: 30-in. (762 mm) Track Belt (standard)

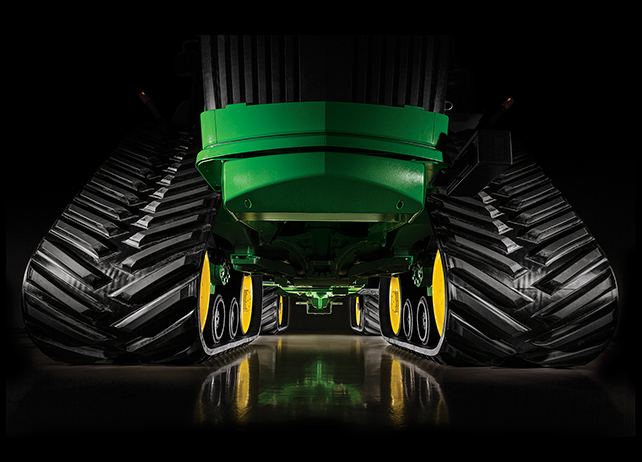

9520RX
Tracked Scraper Special Tractors
The power and the attitude to be the best at what you do.
- Horsepower: 520 engine hp
- Hydraulic Capacity: Up to 58 U.S. gpm (220 L/min) standard. Up to 115 U.S. gpm (435 L/min).
- Drawbar Support: Available for short scraper drawbars
- Track Belt: 30-in. (762 mm) Track Belt (standard)
9570RX
Tracked Scraper Special Tractors
The power and the attitude to be the best at what you do.
- Horsepower: 570 engine hp
- Hydraulic Capacity: Up to 58 U.S. gpm (220 L/min) standard. Up to 115 U.S. gpm (435 L/min).
- Drawbar Support: Available for short scraper drawbars
- Track Belt: 30-in. (762 mm) Track Belt (standard)
1510DC
Carry-All Scrapers
Choose from a variety of carry-all options.
- Struck capacity (cubic yards): 11
- Heaped capacity (cubic yards): 15
1812DC
Carry-All Scrapers
Choose from a variety of carry-all options.
- Struck capacity (cubic yards): 14
- Heaped capacity (cubic yards): 18
1814DC
Carry-All Scrapers
Choose from a variety of carry-all options.
- Struck capacity (cubic yards): 14
- Heaped capacity (cubic yards): 18
2112DC
Carry-All Scrapers
Choose from a variety of carry-all options.
- Struck capacity (cubic yards): 14
- Heaped capacity (cubic yards): 21.5
1612DE
Ejector Scrapers
Choose from a variety of ejector options.
- Struck capacity: 9.2 m³ (12.0 cu. yd.)
- Heaped capacity: 12.2 m³ (16.0 cu. yd.)
- Bowl width: 3.7 m (12 ft. 0 in.)
2010DE
Ejector Scrapers
Choose from a variety of ejector options.
- Struck capacity: 10.4 m³ (13.6 cu. yd.)
- Heaped capacity: 15.3 m³ (20.0 cu. yd.)
- Bowl width: 3.2 m (10 ft. 6 in.)
2014DE
Ejector Scrapers
Choose from a variety of ejector options.
- Struck capacity: 11.1 m³ (14.6 cu. yd.)
- Heaped capacity: 15.3 m³ (20.0 cu. yd.)
- Bowl width: 4.4 m (14 ft. 6 in.)
2412DE
Ejector Scrapers
Choose from a variety of ejector options.
- Struck capacity: 12.1 m³ (15.8 cu. yd.)
- Heaped capacity: 18.3 m³ (24.0 cu. yd.)
- Bowl width: 3.7 m (12 ft. 0 in.)
